FLASH

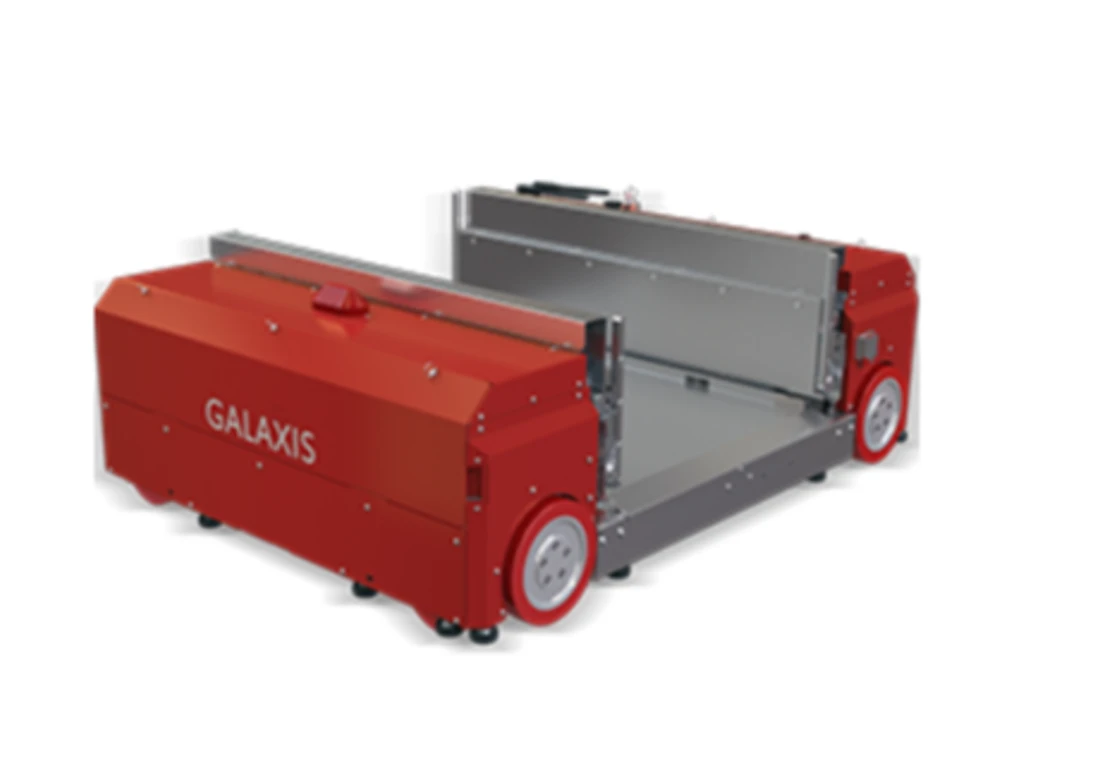

GALAXIS Four-Way Tote Multi-directional Shuttle Robot (MSR) FLASH is a kind of box and tote handling equipment, with lift and conveyor it can achieve AS/RS functionality. Special designed chassis makes shuttle to move in four directions (forward,backward, left, right) on a plane, operate across aisles, and work in conjunction with high-speed lifts to enable multi-level operations.Within the three-dimensional space formed by dense storage racks, each MSR can reach any storage location in the shuttle warehouse, retrieve or store totes/pallets, and transport them to designated positions, thus enabling goods-to-person. Various sizes of containers, cartons and trays with loads of up to 50 kilograms (110 lb) can be stored multi-deep or stacked in the shuttle system. It is the right choice for high performance in order fulfillment with maximum flexibility in processes.

Key Capabilities

High-density Storage

Multi-depth storage of various size cartons and totes bring better space utilization in different environments.

Flexible configuration

The system adapts to any shape of building, due to the 3D movement operation makes building configurations more easily.

Scalability

System throughput can be extended with additional MSRs and lifts when needed.

Reduce costs and increase efficiency

System can be built with more than 20m with lower footprint and more storage space. The operator will no need to walk into the aisle to finish the order picking, meanwhile with G.T.P. picking station can definitely achieve very high picking efficiency and less labor.

Reliability

More than 200 clients have selected GALAXIS MSRs as their AS/RS to help them improve business process. We do get the trust and reputation from our users.

Redundancy

When any MSR needs to be maintained, no need to block whole system but only for several locations around the MSR, which minimized impact for whole system throughput.

Models

FLASH
Max. Payload

50kg

Max. Operation Speed

5m/s

Power Supply

Capacitor & Lithium Battery

Charging Time

10s charge > 3min runtime

LHD

FLEX/Standard

Positioning Accuracy

±1mm

Communication

Wi-Fi & 5G

Operation Direction

+X/+Y

Humidity

10-95% non-condensing

Material Handling

Material Handling

FLASH
Max. Payload

50kg

Max. Operation Speed

5m/s

Power Supply

Capacitor & Lithium Battery

Charging Time

10s charge > 3min runtime

LHD

FLEX/Standard

Positioning Accuracy

±1mm

Communication

Wi-Fi & 5G

Operation Direction

+X/+Y

Humidity

10-95% non-condensing

Material Handling

Material Handling
